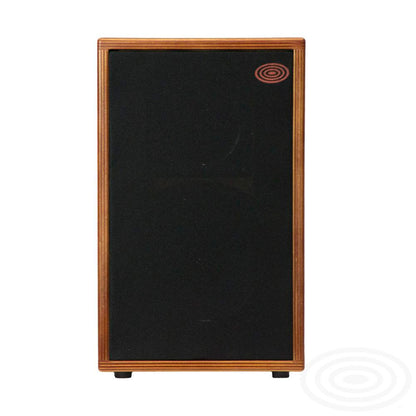

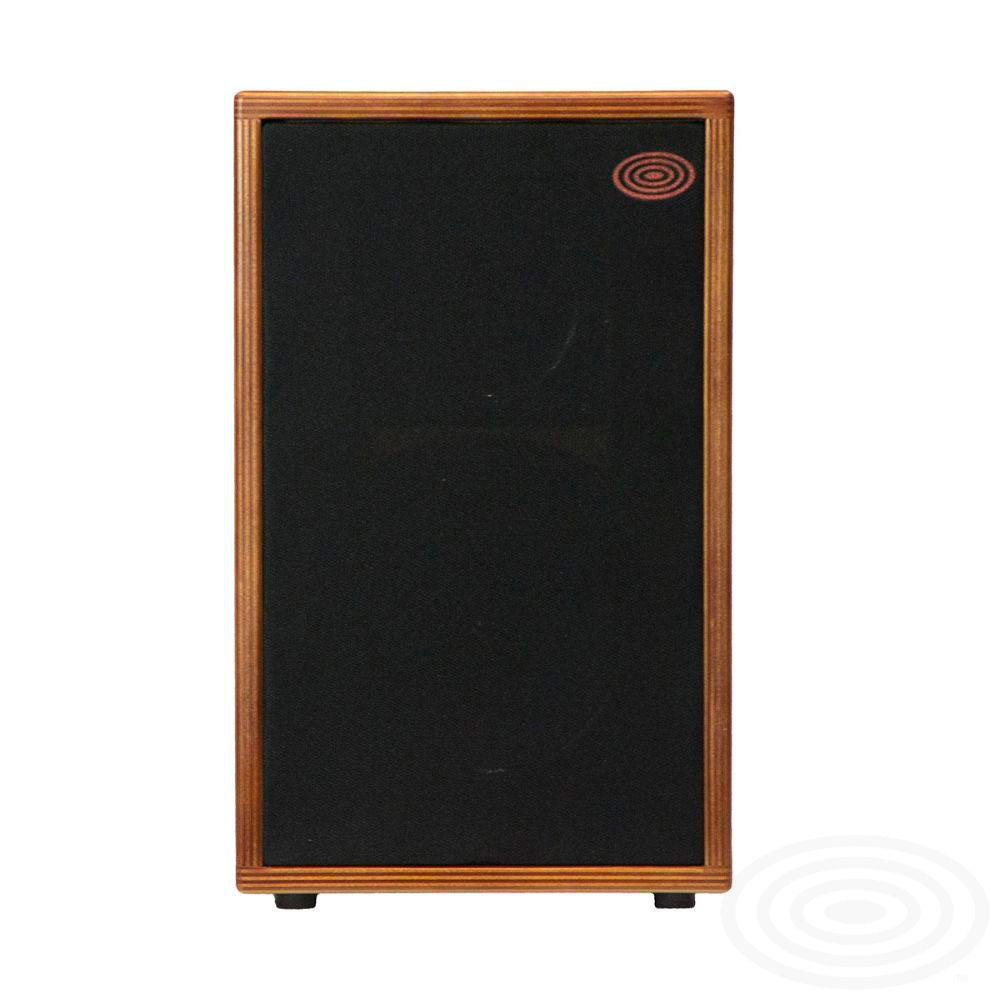

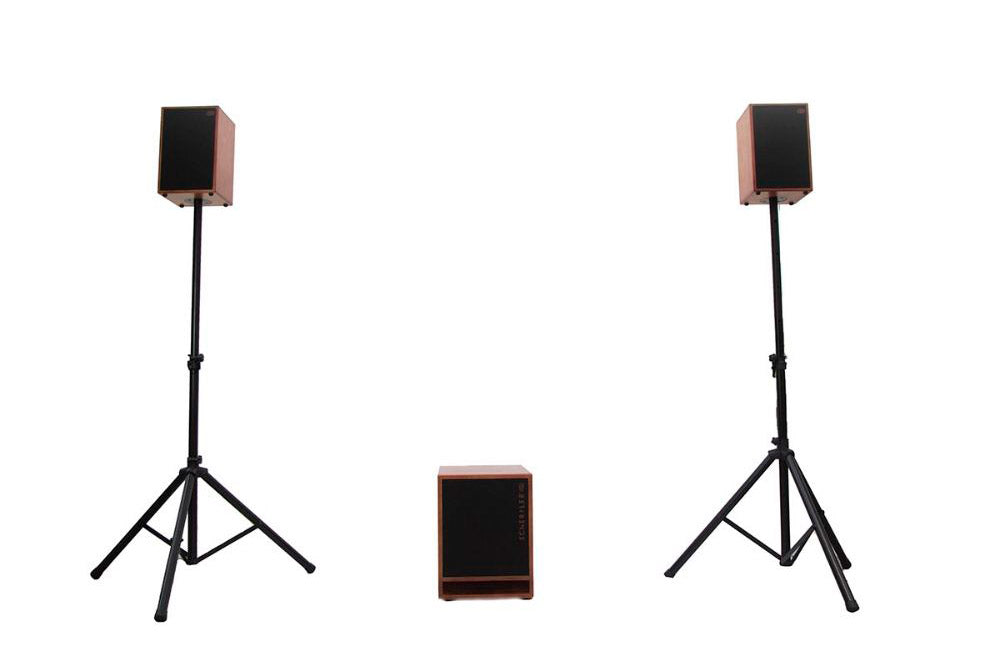

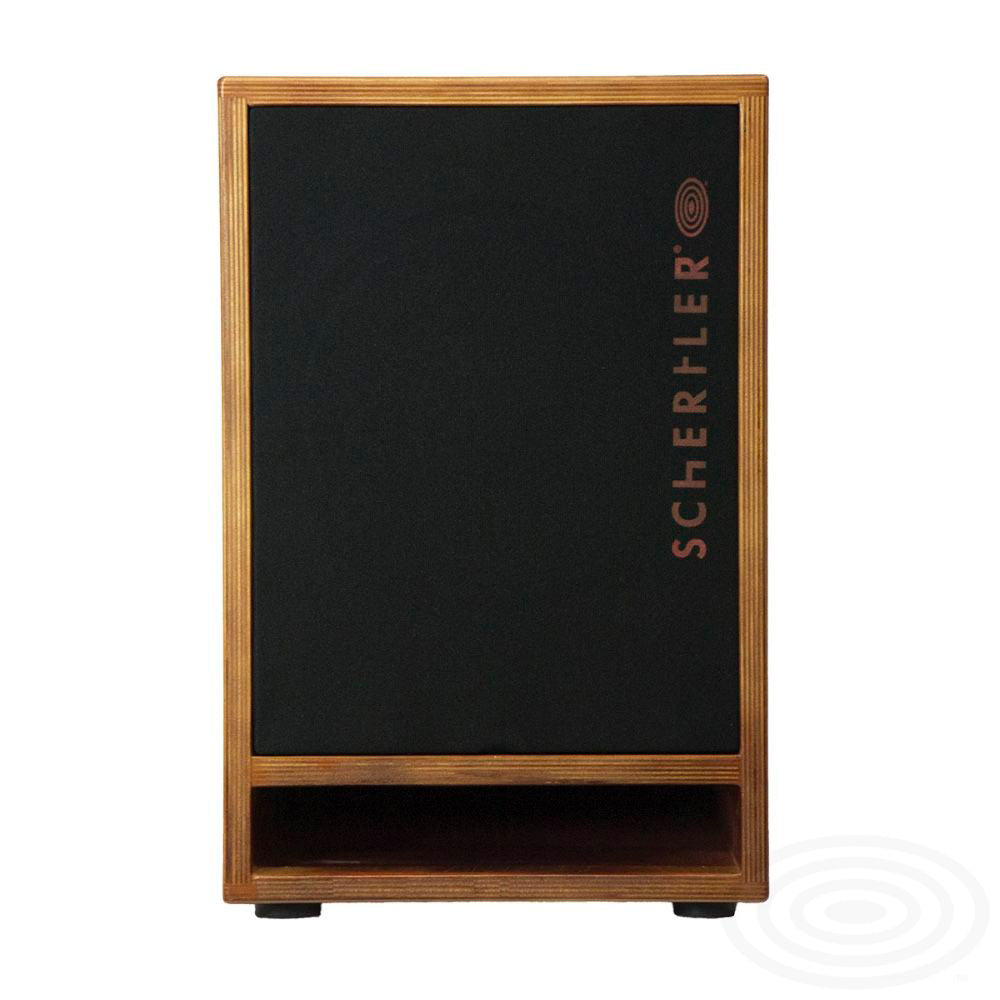

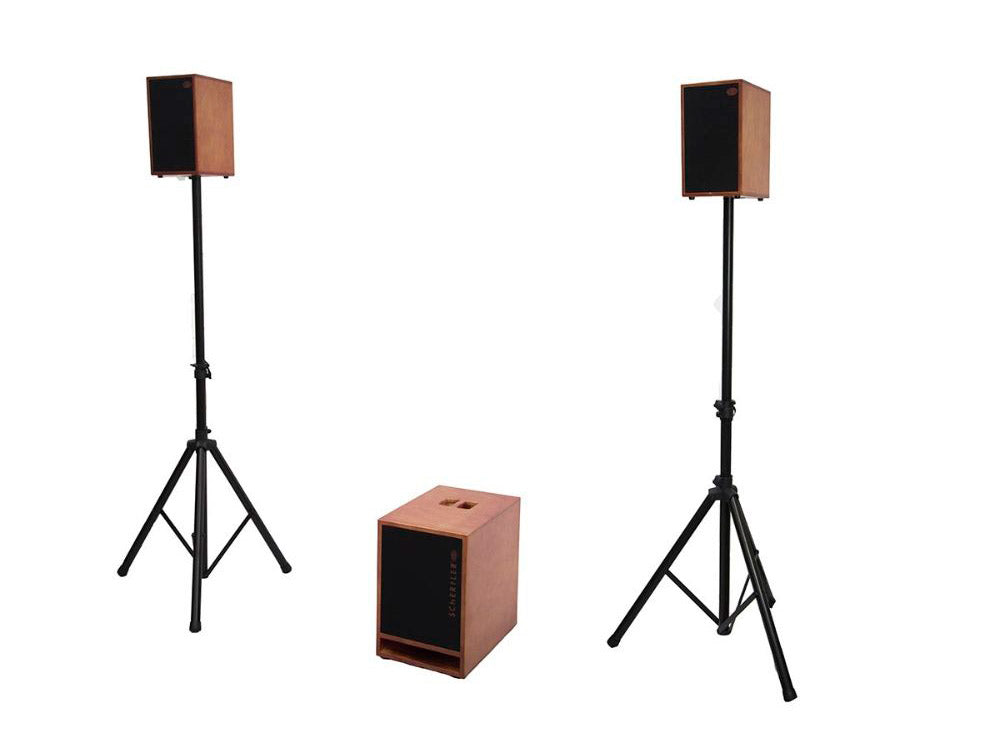

Schertler TIM Wood PA-System

Frequency response: 150 Hz-  20 kHz
Sensitivity @ 1W/1m: 94.0  dBSPL
SPL max (calc.): 118 dBSPL
Crossover: Passive - 18dB/octave
Crossover frequency: 2.3 kHz
LF Transducer: 6" Woofer, Ferrite magnet circuit, Voice coil diameter 38 mm
HF Transducer: Compression Driver 1" Throat
Voice coil diameter 25 mm
90°x90° (H x V) horn
Power Handling (Continuous/Peak): 125W/250W

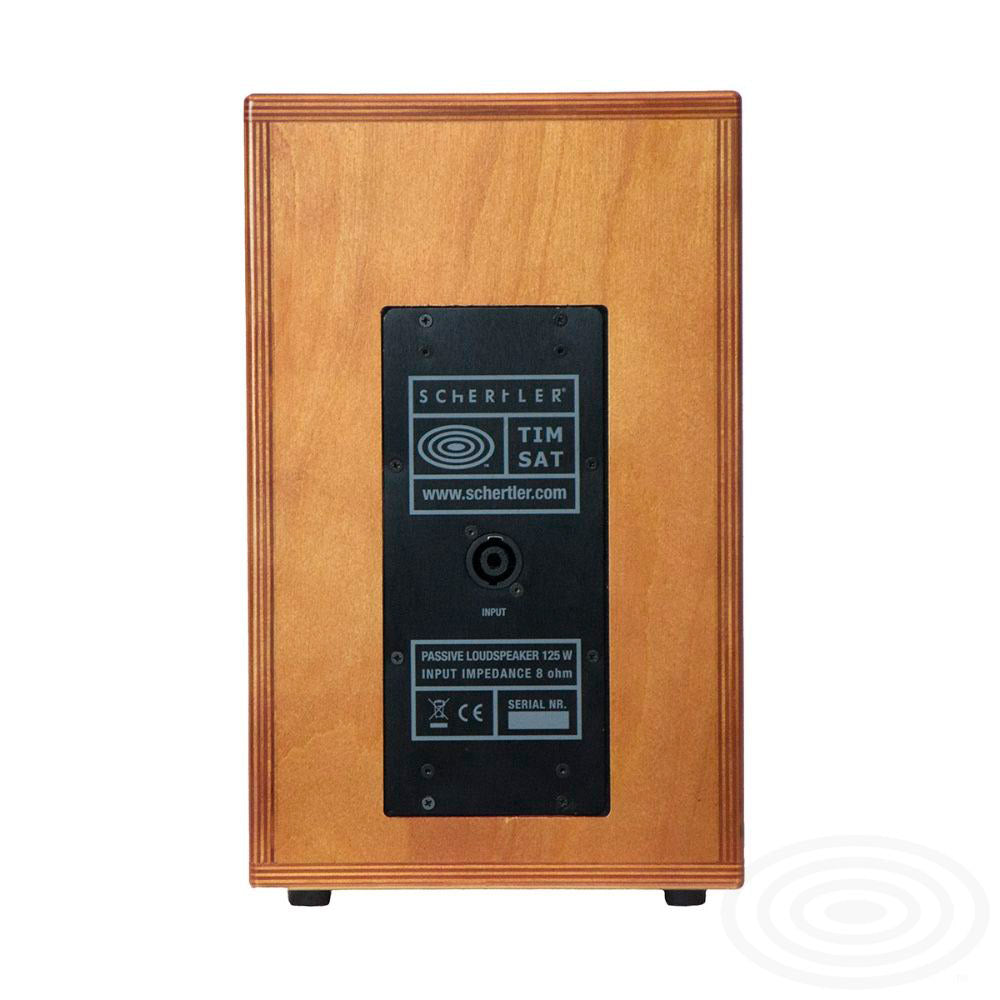

Connection: Speakon Input
Nominal Impedance (Passive): 8 O
Controls: No control

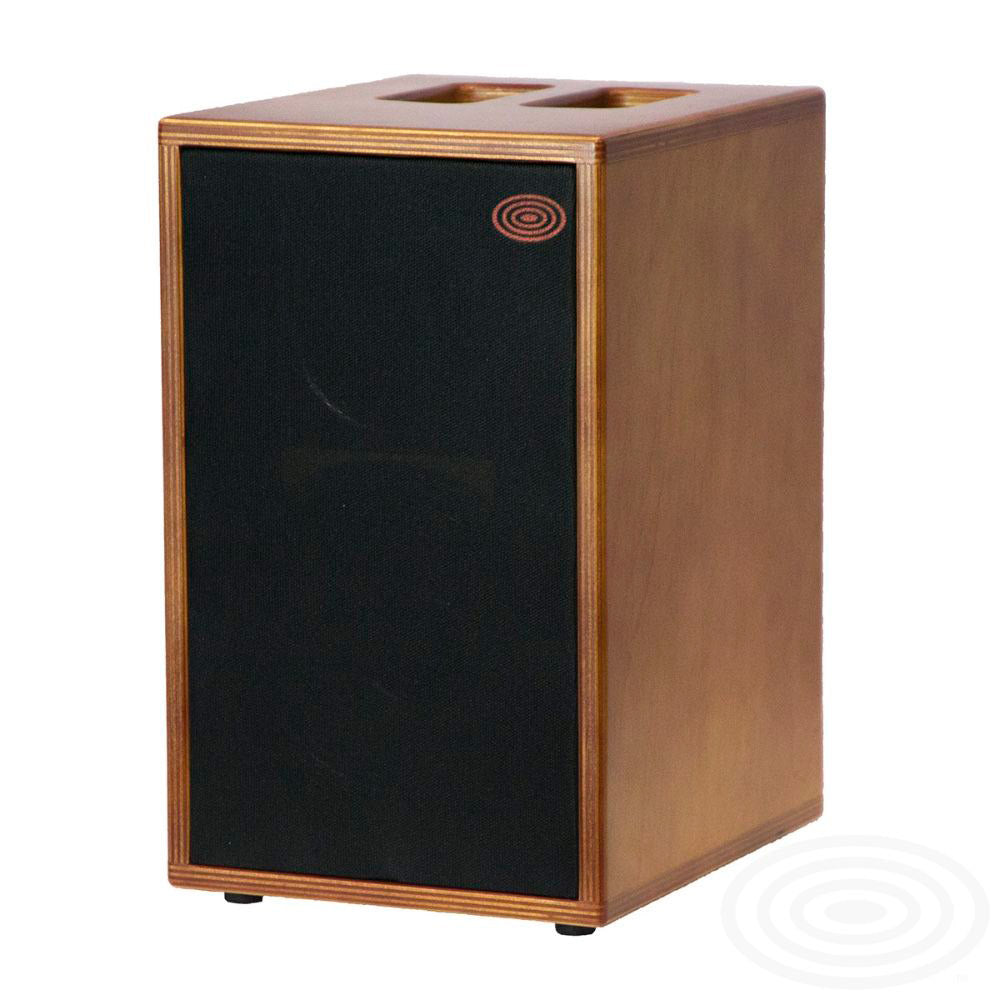

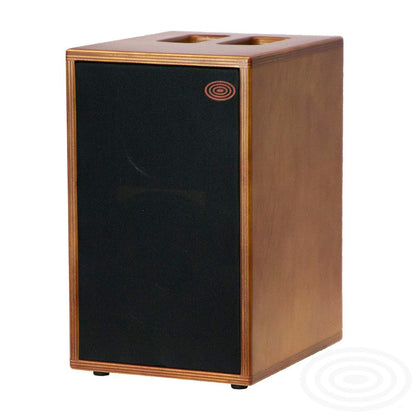

Box: 12 mm Plywood, Two-way
Stand mounting: Top hat composed, of welded steel tube ø 36 mm, h=77 mm
Weight: kg 6
Dimensions (LxDxH): 210 x 240 x 340 mm
