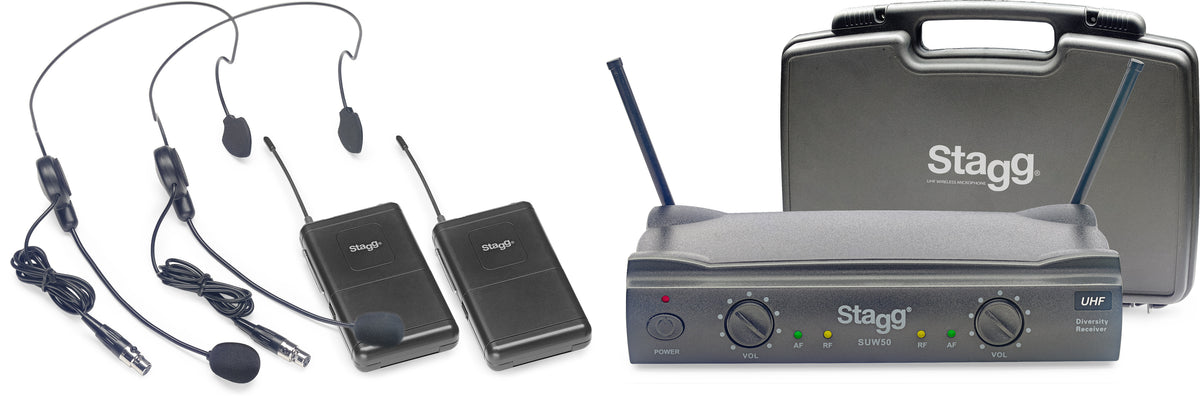

STAGG SUW 50 HH FH EU Headmic

UHF true diversity 2-channel headset wireless system

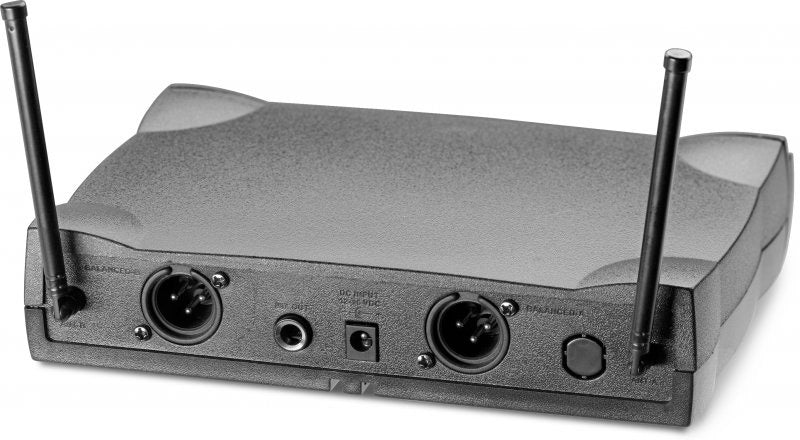

Receiver
- Fixed frequencies: 864.2 - 864.7
- Audio output unbalanced: Maximum 5 dBu
- Power supply: 12-18 V DC
- Power consumption: 150 mA (at 13.5 V DC)
- Receiver sensitivity: - 90 dBm

Handheld microphones and belt-pack transmitters
- Fixed frequencies: 864.2 - 864.7
- RF emitting power: 10 mW
- Battery type: 2 x AA battery
- Frequency response: 50 - 20 000 Hz
- Input sensitivity: 2.1 mV / Pa
- Power consumption: 100 mA at 3 V

System
- Total harmonic distortion: 0.1 %
- Signal-to-noise ratio: 96 dB
- Fixed frequencies: 864.2 - 864.7
- Operational bandwidth: 300 kHz
- Dynamic range: 90 dB
- Audio sampling: 24 bits / 48 kHz
- Oscillation mode: PLL synthesized
- Audio delay: 3 ms
- Audio encoder: PT live
- Frequency response: 20 - 20 0000 Hz
- Working distance: 60 m (200')
